Olive Tree
Equipment height
7.15 m
Space requirement
6.60 x 6.60 m
Min. fall protection
62.00 m²
Safety zone
9.50 x 9.50 m
Height of fall
3.00 m
Concrete necessary m³
2.10 m³
Recommended minimum age
For children from the age of 6
Number of users
74
Standards and Rules
EN 1176

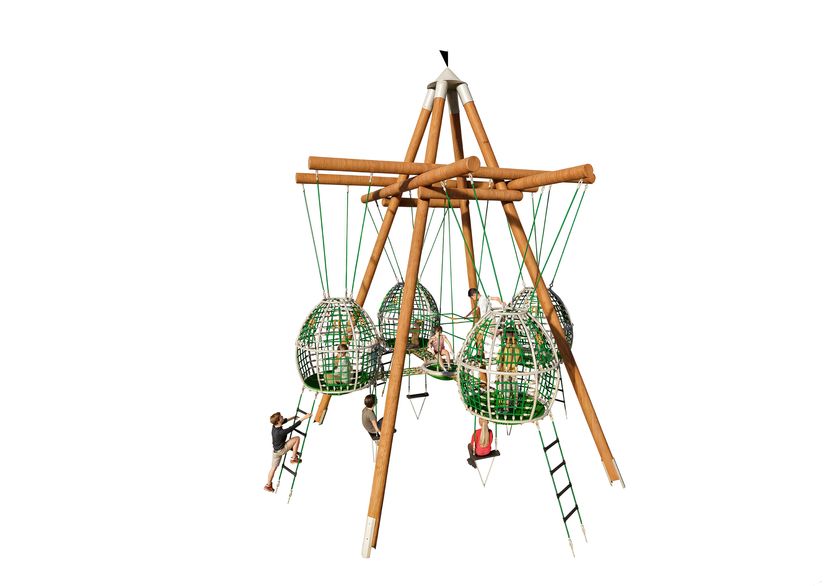

Olive Tree
The Olive Tree is ideal for children from the age of 6. This equipment offers a variety of challenges that children of this age are looking for. Motor skills are trained and, of course, the fun of movement is right at the top!
Balancing, shimmying and climbing is the motto here
Equipment:
- 4 x upright posts made of Douglas fir (Ø 180 mm), core-free, pressure impregnated, with galvanized post shoes, length 7.00 m
- 4 x cross beams made of Douglas fir (Ø 180 mm), core-free, pressure impregnated, length 5.00 m
- 2 x cross beams made of Douglas fir (Ø 180 mm), core-free, pressure impregnated, length 1.80 m
- 1 x original HUCK Mini Bird's Nest® basket (Ø 0.90 m) incl. suspension ropes
- 4 x access ladders with plastic rungs (green-black)
- 4 x swing seats (green-black)
- 4 x net crossovers with rope railing (green)
- 4 x olives made of VA tubular steel, with steel cable link mat neon green and Hercules climbing nets, incl. suspension ropes (green)
- Ropes and nets made of Hercules rope (Ø 16 mm, 6-strand, with steel core)
Our HUCK rope play equipment is characterised by its versatility and quality. In addition to various rope colours, such as green, blue, yellow and red, you can also choose from different plastic adapter colours. The colour of each device can be adapted to almost all customer requirements.
To ensure the best possible quality for you, our products are manufactured in our own premises in Germany and checked by our qualified employees before delivery.
Properties
Article number
4652-24
Equipment height
7.15 m
Space requirement
6.60 x 6.60 m
Min. fall protection
62.00 m²
Safety zone
9.50 x 9.50 m
Height of fall
3.00 m
Concrete necessary m³
2.10 m³
Recommended minimum age
For children from the age of 6
Number of users
74
Standards and Rules
EN 1176
Assembly time
8 hours without foundations
Personnel Required
3-5 persons
Ships in approx.
30-40 days
Downloads
TÜV Zertifikat-0511-E
