Plastic Link Hammock
Lying surface
0.80 x 1.80 m
Equipment height
1.60 m
Space requirement
4.65 x 0.90 m
Safety zone
4.90 x 3.90 m
Min. fall protection
16.90 m²
Height of fall
0.65 m
Recommended minimum age
For children from the age of 3
Number of users
5
Standards and Rules
EN 1176

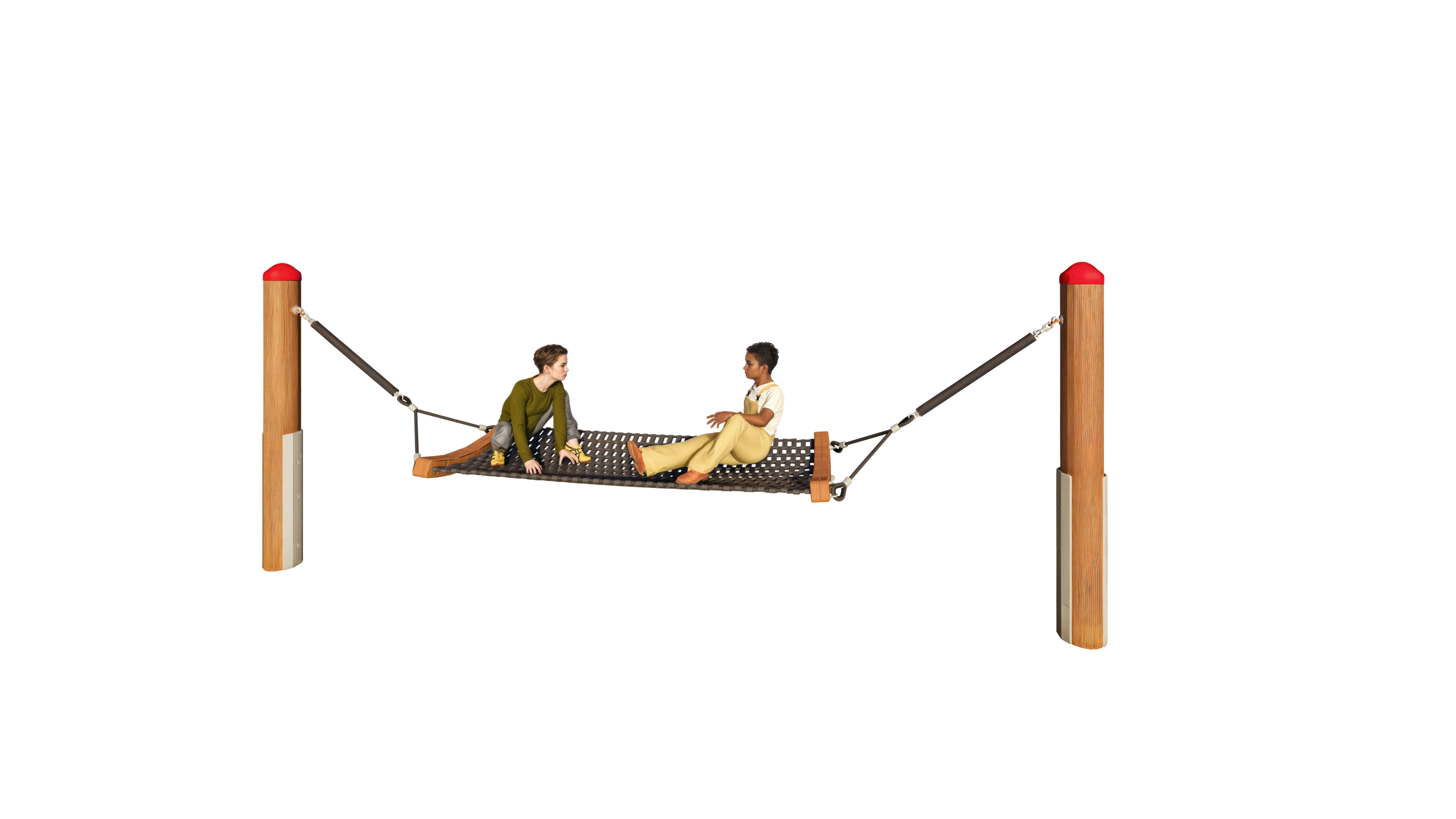

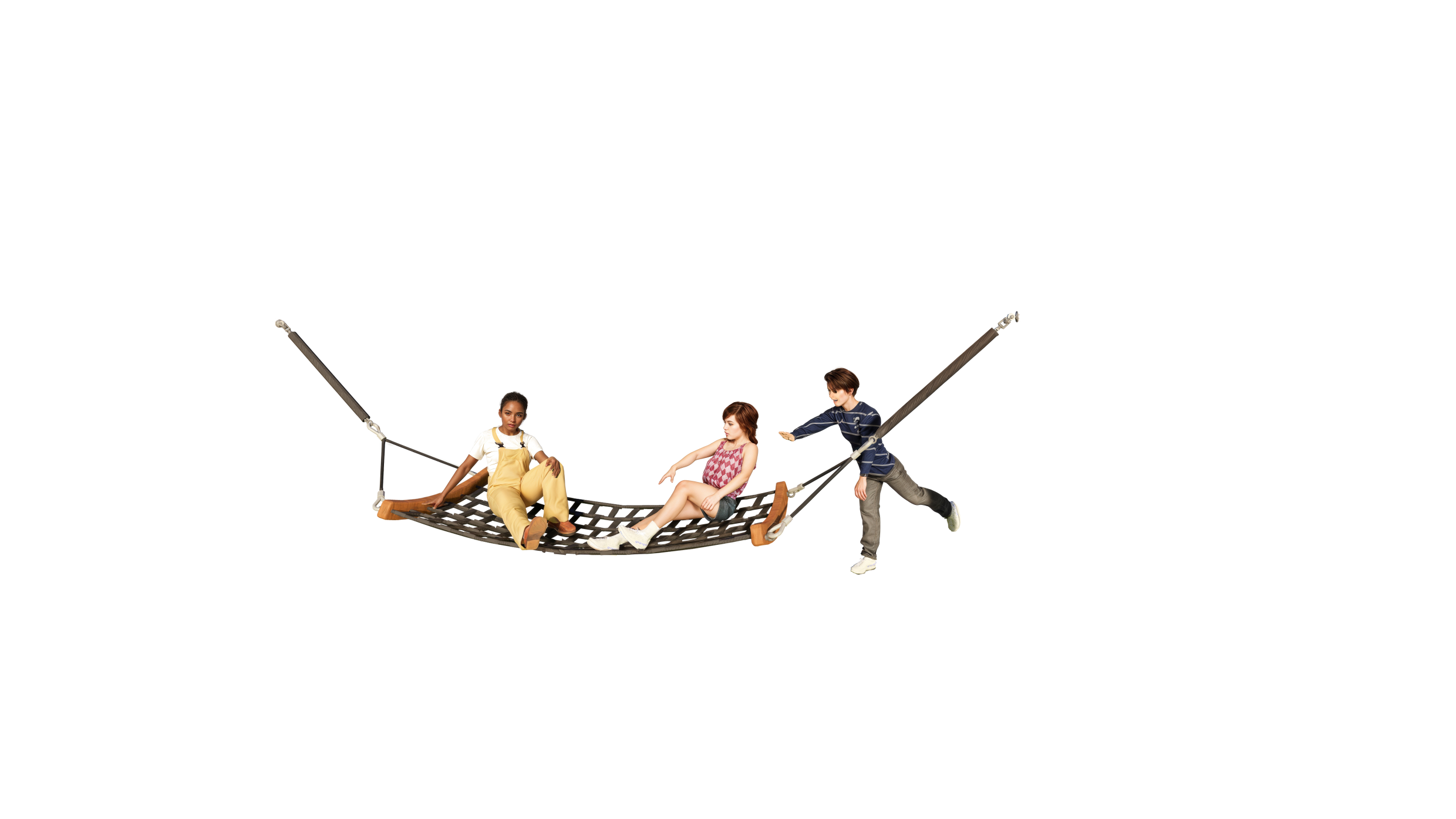

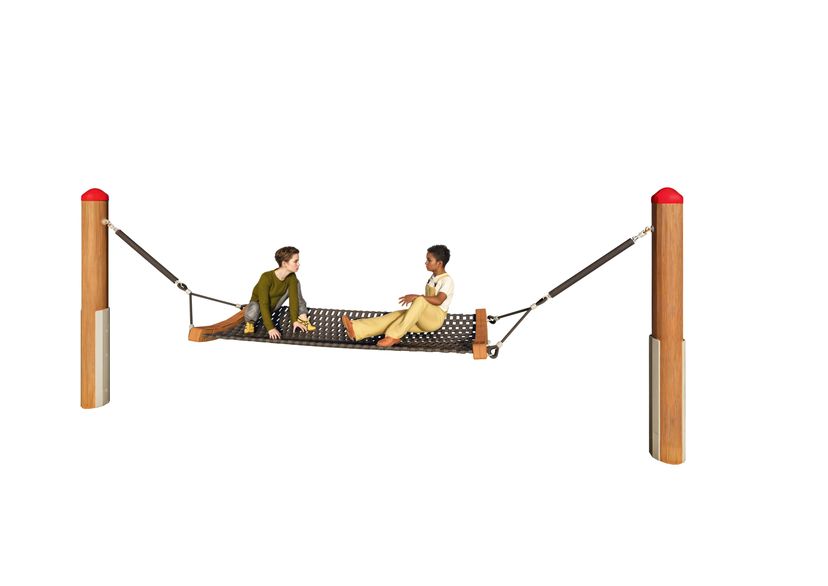

Plastic Link Hammock
Equipment:
- Lying surface with a steel cable link mat (with plastic links)
- Spacers (2x) for the mat made from bent wooden brackets
- Suspension ropes made of Hercules rope (Ø 16 mm, 6-strand, with steel core)
- Standard color red, incl. chain (8 mm; galvanized) and hose cover (color red) for length adjustment
- With pre-assembled special swivel M8 on both sides
- Without suspension bearing (recommendation art. no. 4608-4) and support post (e.g. art. no. 805/805S/805PS)
- Clear post spacing 4200 mm; suspension height: + 1.29 m or clear post spacing 4000 mm; suspension height: + 1.50 m
Please note!
The space required for foundations (assembly space) is bigger than the minimum space requirement for the equipment.
Our HUCK rope play equipment is characterised by its versatility and quality. In addition to various rope colours, such as green, blue, yellow and red, you can also choose from different plastic adapter colours. The colour of each device can be adapted to almost all customer requirements.
To ensure the best possible quality for you, our products are manufactured in our own premises in Germany and checked by our qualified employees before delivery.
Properties
Article number
806
Lying surface
0.80 x 1.80 m
Equipment height
1.60 m
Space requirement
4.65 x 0.90 m
Safety zone
4.90 x 3.90 m
Min. fall protection
16.90 m²
Height of fall
0.65 m
Recommended minimum age
For children from the age of 3
Number of users
5
Standards and Rules
EN 1176
Assembly time
1 hour without foundations
Personnel Required
2 persons
Ships in approx.
25-35 days
Downloads
TÜV Zertifikat-0506-E
