Bow Net
Equipment height
3.05 m
Space requirement
5.15 x 2.70 m
Safety zone
6.70 x 5.10 m
Min. fall protection
24.90 m²
Height of fall
2.20 m
Concrete necessary m³
3.10 m³
Recommended minimum age
For children from the age of 6
Number of users
11
Standards and Rules
EN 1176

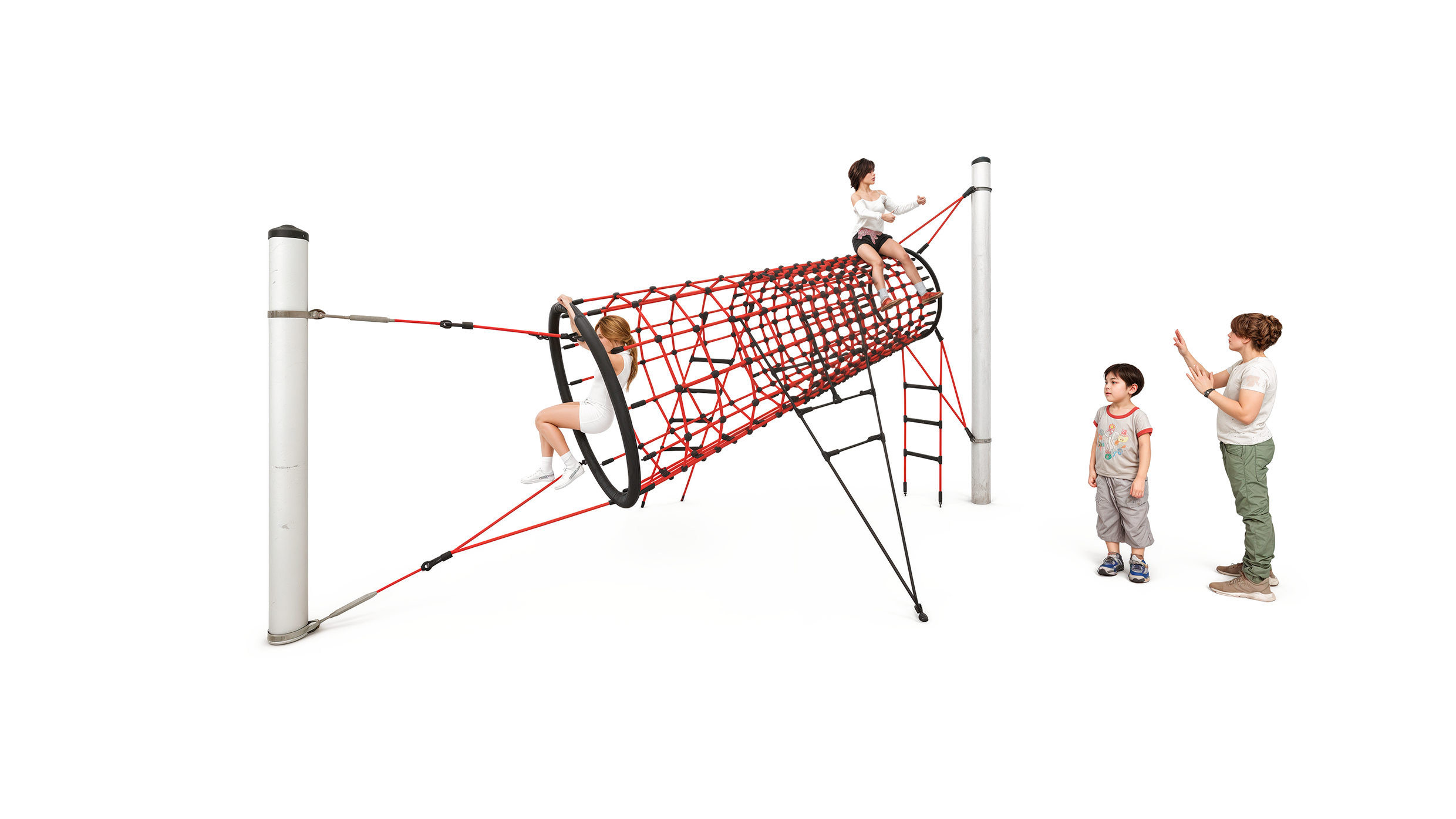

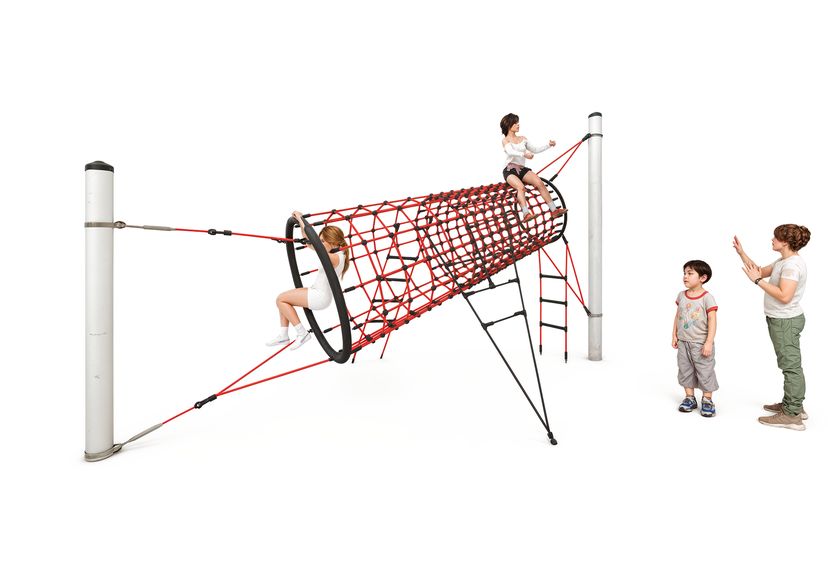

Bow Net
The Bow Net is ideal for children from the age of 6. This equipment offers a variety of challenges that children of this age are looking for. Motor skills are trained and, of course, the fun of movement is right at the top!
Balancing, shimmying and climbing is the motto here
Equipment:
- 2 steel upright posts(159 mm Ø), hot-dip galvanised, length: 3.9 m/2.9 m
- 2 steel rings
- 2 access ladders
- 1 access net
- Ropes and nets made of Hercules rope (Ø 16 mm, 6-strand, with steel core)
Our HUCK rope play equipment is characterised by its versatility and quality. In addition to various rope colours, such as green, blue, yellow and red, you can also choose from different plastic adapter colours. The colour of each device can be adapted to almost all customer requirements.
To ensure the best possible quality for you, our products are manufactured in our own premises in Germany and checked by our qualified employees before delivery.
Properties
Article number
4960-15
Equipment height
3.05 m
Space requirement
5.15 x 2.70 m
Safety zone
6.70 x 5.10 m
Min. fall protection
24.90 m²
Height of fall
2.20 m
Concrete necessary m³
3.10 m³
Recommended minimum age
For children from the age of 6
Number of users
11
Standards and Rules
EN 1176
Assembly time
5 hours without foundations
Personnel Required
2 persons
Ships in approx.
20-30 days
Downloads
TÜV Zertifikat-0511-E
